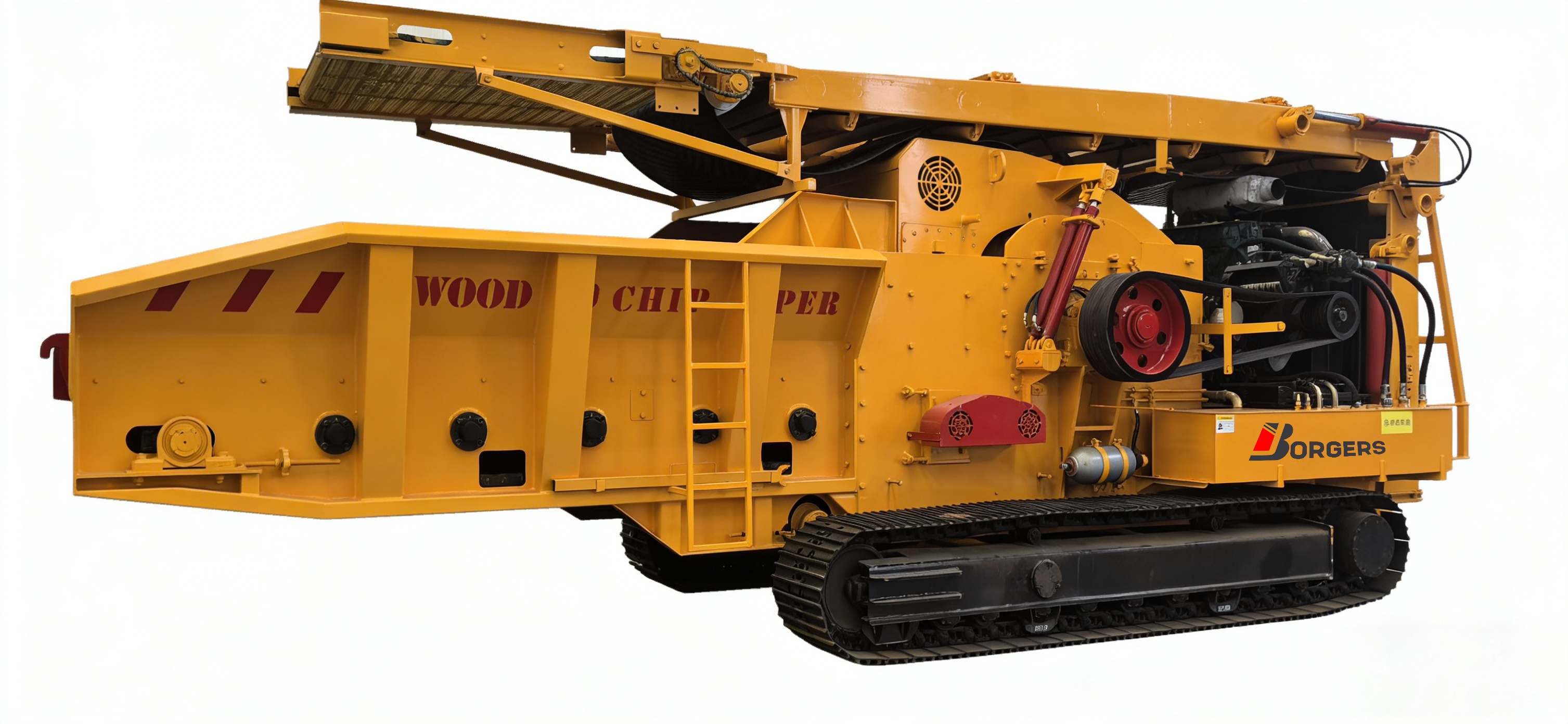

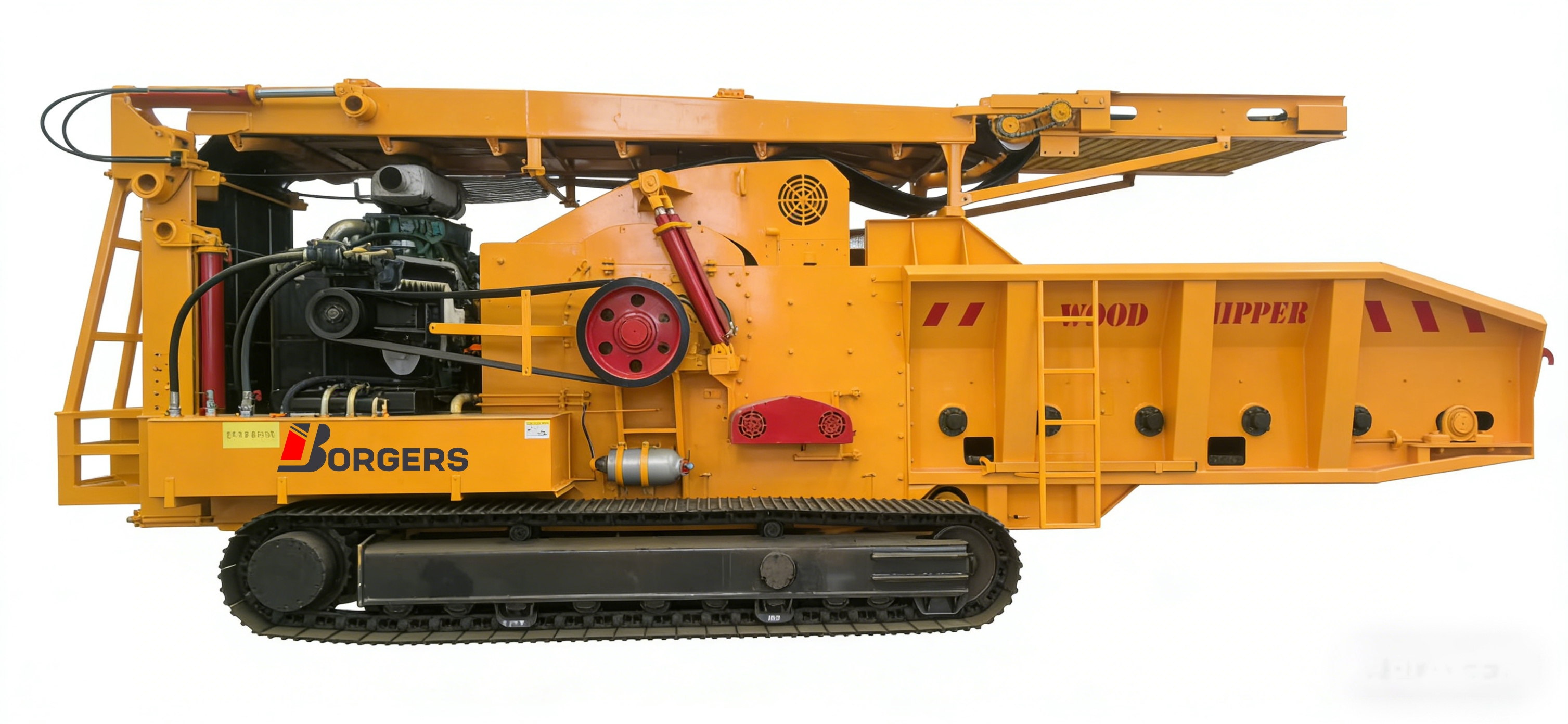

Mobile Tracked Wood Crusher

Mobile Tracked Wood Crusher

Full hydraulic tracked mobile wood crusher for biomass power plants, particle board factories, paper mills and pellet plants. It can crush wood logs, branches, wood waste, bamboo, straw and other biomass materials with high efficiency and stability.


  • Payment :

    TT or L/C at sight
  • Product Origin :

    China
  • Color :

    Yellow
  • Weight :

    22 T (BGS1400DYK-800) / 26 T (BGS1600DYK-800)
  • Model :

    BGS1400DYK-800 / BGS1600DYK-800
  • Brand :

    Borgers
  • Transport Dimensions :

    8.3×2.82×3.5 m (BGS1400DYK-800) / 9.3×3×3.5 m (BGS1600DYK-800)

Our BGS Series MOBILE TRACKED WOOD SHREDDER is an industry-leading full-hydraulic tracked processing system, exclusively engineered for the raw material preparation section of biomass power plants, MDF (Medium Density Fiberboard) mills, paper mills, biomass pellet plants, and other professional wood & biomass processing facilities. This premium MOBILE TRACKED WOOD CHIPPER is built on decades of drum chipper manufacturing expertise, precision-designed to match diverse feedstock characteristics and strict particle size requirements, making our MOBILE TRACKED WOOD CHIPPER the ideal all-in-one solution for on-site biomass processing worldwide.

This high-efficiency MOBILE TRACKED WOOD SHREDDER delivers exceptional processing performance across an extensive range of woody and non-woody feedstocks. MOBILE TRACKED WOOD SHREDDER’s core compatible raw materials include various logs, small-diameter wood, forest harvesting residues (such as branches and twigs), wooden pallets, construction formwork, and wood processing residues (including slab wood, laths, log cores, and waste veneers). Beyond woody materials, this versatile MOBILE TRACKED WOOD CHIPPER also handles non-woody biomass with consistent precision, including hemp stalks, reeds, moso bamboo, corn stalks, and cotton stalks, delivering uniform finished materials to support seamless downstream production.

The rugged heavy-duty build of our MOBILE TRACKED WOOD SHREDDER is optimized for continuous, reliable operation in harsh on-site environments. The complete structure of this MOBILE TRACKED WOOD CHIPPER includes a reinforced frame, bed knife holder, industrial-grade bed knives, cutting rods, high-strength rotor, precision main shaft, wear-resistant fly knives, upper and lower feeding mechanisms, infeed system, discharge system, hydraulic buffer system, intelligent electrical control system, high-power drive system, and heavy-duty tracked traveling system. Every component of MOBILE TRACKED WOOD CHIPPER is engineered for long service life, minimal downtime, and maximum operational safety.


Features:

it can automatically adjust the feeding speed according to the main power load, avoiding no-load operation of the machine; it is safe and reliable to use, easy to maintain, energy-saving and environmentally friendly, and easy to move; it is currently an ideal biomass crushing chipper worldwide.


Specification

ItemBGS1400DYK-800BGS1600DYK-800
Rotor Diameter800mm800mm
Rotation Speed760 rpm760 rpm

Number of

hydraulic breakers

32 pieces36 pieces
Feeding Port Size1400-600 mm1600-600 mm
Maximum Raw Material Size≤450mm≤450mm
Power

Diesel engine,Weichai 480

horsepower,China III standard

Diesel engine,Weichai 530

horsepower,China III standard

Feeding&Discharge

Mechanism

Hydraulic MotorHydraulic Motor
Feed Conveyor3-meter Chain Plate4-meter Chain Plate
Discharge Conveyor Length8-meter Folding Belt8-meter Folding Belt
Production Capacity20-25 TPH25-30 TPH
Moving DeviceTrackTrack
Control SystemDistribution box + Remote ControlDistribution box + Remote Control
Random Spare Parts32 tiger claws36 tiger claws
Weight22 tons26 tons
Overall Dimensions8.3×2.82×3.5m9.3×3×3.5m


After Service

Servicing your equipment is important, Borgers’s after-service team and its dealers  will response within 12 hours
