Blow Bar of Impact Crusher

Blow bar that inserted into the rotor is used to impact rock to finish crushing, acting as wear parts of the horizontal shaft impact, it accounts for a large proportion of the total operation cost.



  • Payment :

    TT or L/C at sight
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Shanghai Port
  • Weight :

    depends on selected configuration
  • Brand :

    Borgers
  • Transport Dimensions :

    depends on selected configuration

There are three different options:

  •  4 high blow bar , normally used to used to crush material -250mm, end product -10mm;
  •  3 high blow bar, used to product more fine end product;
  •  2 high and 2 low,  the most commonly used configuration.

Wear life of blow bar affect by many factors:

  • About 45% for material
  • About 10% for moisture of material
  • About 8% for the crushing ratio rate
  • About 10% for the fine content of raw material
  • About 20% for the speed of the rotor
  • About 10% for opening size of the first and secondary impacting bar

Based on the different abrasive content of the raw material, choose different blow bar for Reducing the cost of wear parts.

There are Manganese, Martensitic, Martensitic/Ceramic,Medium Chrome, High Chrome, toughened Chrome, High Chrome/Ceramic for your choice.

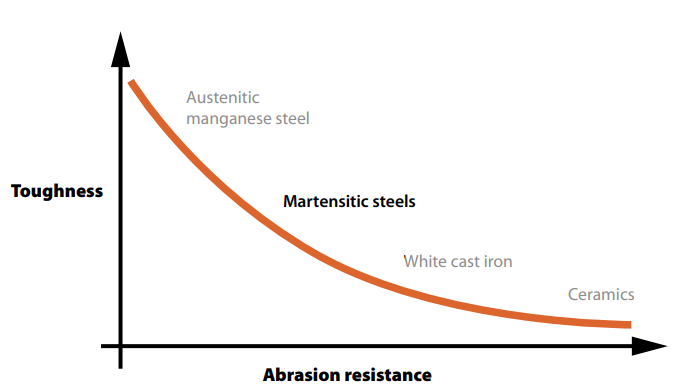

Below is the a reference between abrasive resistance and toughness.

For more detailed suggestion, pls kindly contact with us for further analysis.

blow bar

Leave a message
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
Submit
Related Products10009
Blow Bar of Impact Crusher-10009
Wear Part here with nice price and high quality. If you are interested in our products,come to visit borgerscrusher.com.We offer best Wear Part waiting for your choice.
Flange Screw on the crusher-10009
Flange Screw on the Crusher here with nice price and high quality. If you are interested in our products,come to visit borgerscrusher.com.We offer best Flange Screw on the Crusher waiting for your choice.

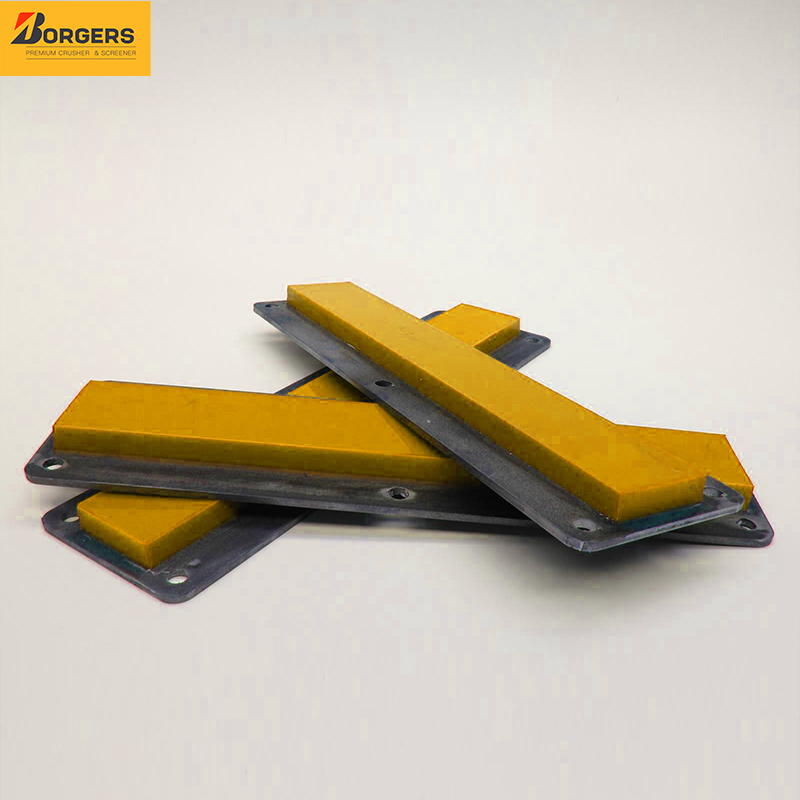

impact bars at Belt Conveyor feed point-10009
Wear Resistance Impact Bar at Feed Point here with nice price and high quality. If you are interested in our products,come to visit borgerscrusher.com.We offer best Wear Resistance Impact Bar at Feed Point waiting for your choice.

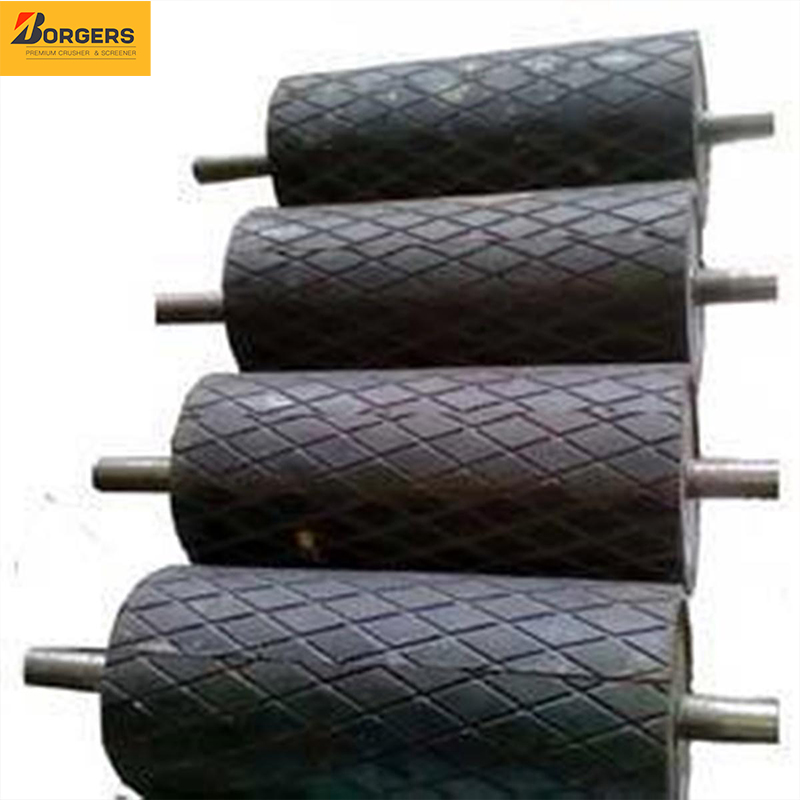

Idle and Drive Drum at the Conveyor-10009
belt conveyor head pulley here with nice price and high quality. If you are interested in our products,come to visit borgerscrusher.com.We offer best belt conveyor head pulley waiting for your choice.

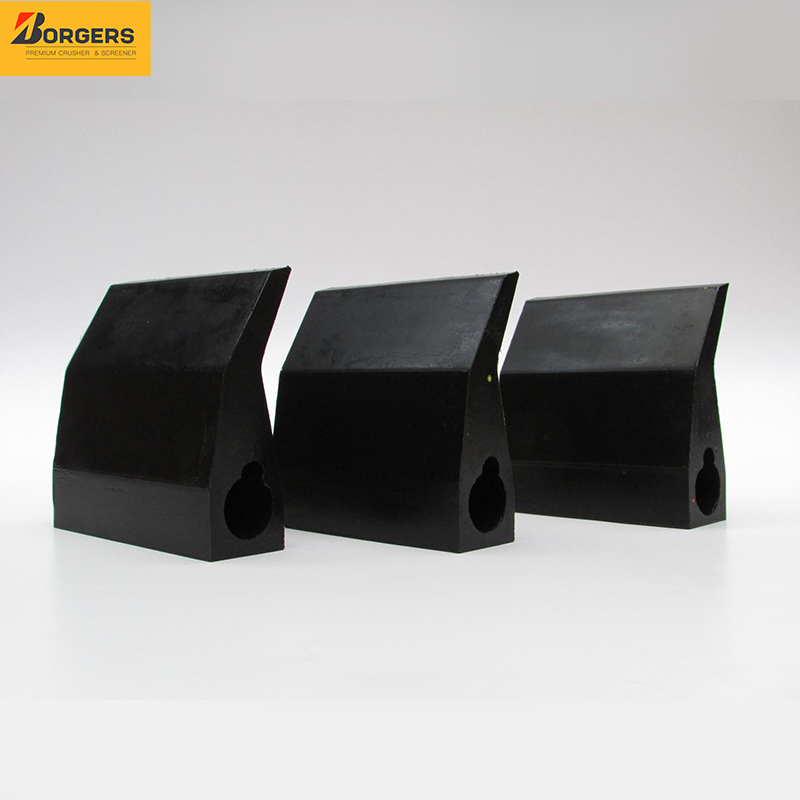

Scraper on the Conveyor of Crusher-10009
Scaper at conveyor head drum here with nice price and high quality. If you are interested in our products,come to visit borgerscrusher.com.We offer best Scaper at conveyor head drum waiting for your choice.

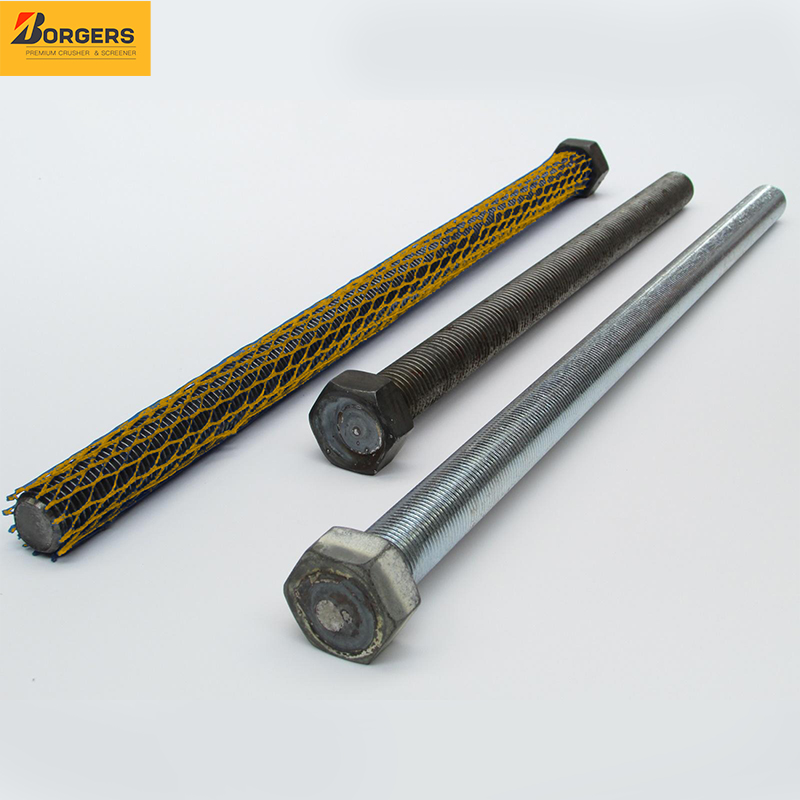

Tension Bolts-10009
