BGFCMVP450 Static Cone Crusher With Aggressive Capacity

Features and Benefits

Ø Easy to operate Manual RLC (Relay Logic Control) with push-button control panel and 3 m tether

Ø Fully guided dual action tramp relief cylinders provide 152 mm lift for easy clearing of jammed feed material to reduce downtime and increase productivity

Ø Hydraulic powered threaded upper assembly for quick crusher setting adjustment under load

Ø Hydro-pneumatic tramp iron relief system instantly resets crusher setting after passing uncrushable material; high flow manifold system with multiple accumulators provides redundant cylinder protection

Ø Pinned cylinder ends remove quickly to allow fast cone separation for faster manganese changes, reducing downtime

Ø Counter-weight protection shield eliminates high velocity wear on base frame and weights, reducing maintenance

Ø Computer optimized, high endurance, all-cast construction with new upper and lower frame castings, rugged, field proven cone head and bowl nut castings for high-force, demanding crushing applications

Ø roller bearing design for high efficiency

Ø Full size feed entry and a vigorous upper cone crushing action increase throughput

Ø Anti-spin brake stops the cone head from spinning, preventing wear on the liners which increases manganese life

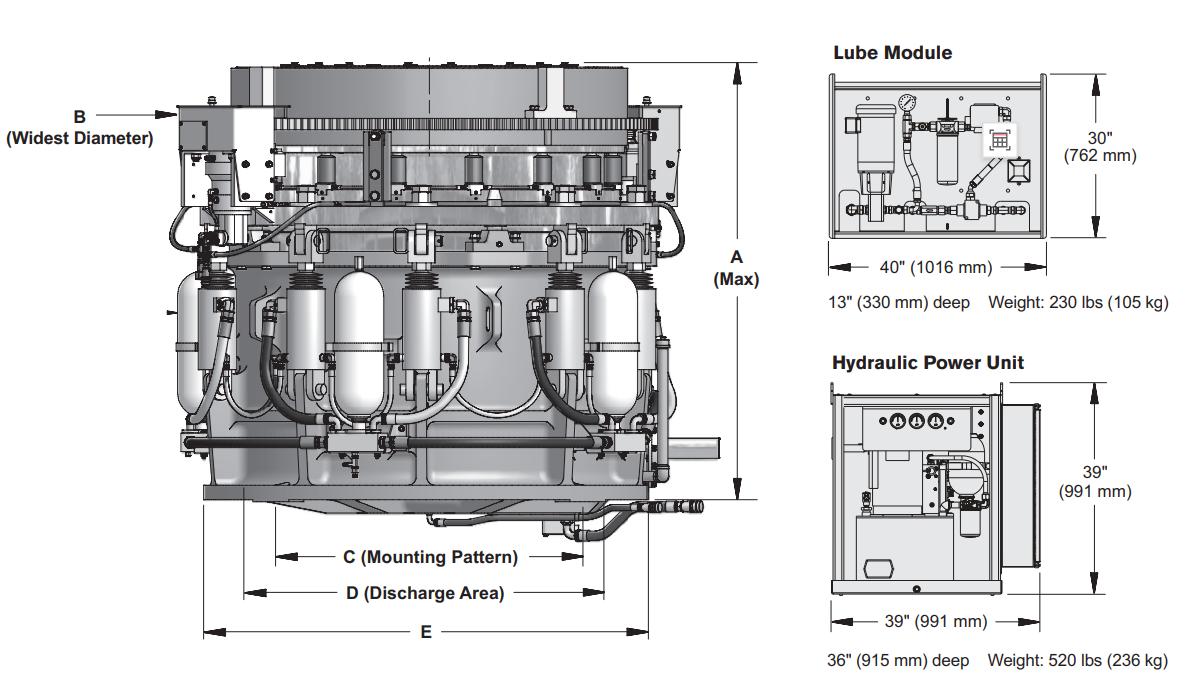

Specification
