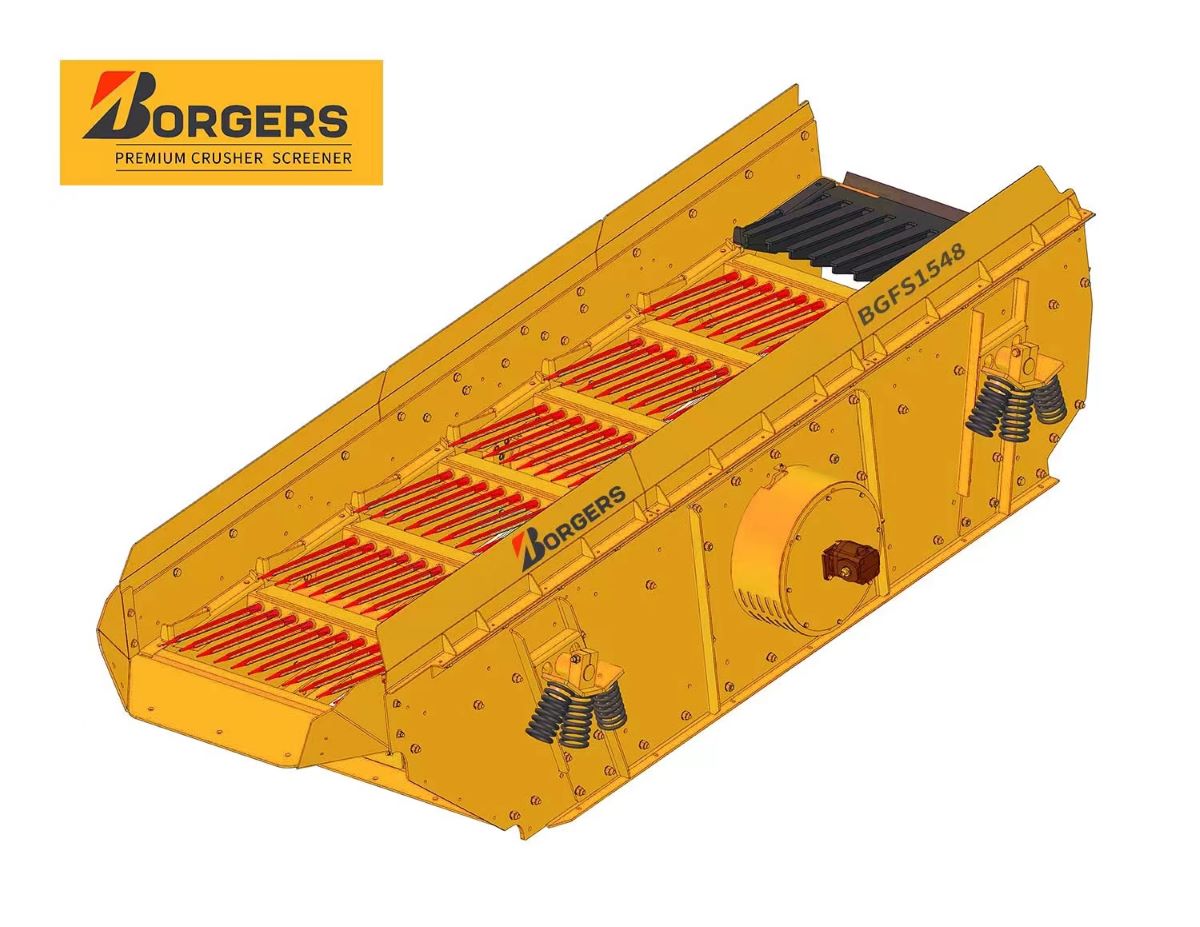

The Borgers BGFS1548 Heavy-duty Screener is designed to work before the Primary crusher or work after cone crusher as an end product screener, Normally it is used on the first stage of the whole production line in most application. So this screen box is made by high-strength steel and Hardox steel for increasing service life.
The screen media could be choose based on the application. There are some screen media combinations on the top deck for optional. Eg: Bar screens, tines screens, finger screens, punch plate screens.
And Woven mesh, ZIGZAG mesh, self-cleaning mesh, string wire mesh for your choice on the bottom deck.
Application include Quarrying,mining construction and demolition,sand,gravel,coal,topsoil,material recycling and aggregates. The plant has the capacity up to 500 t/h and can be fed either by a crusher or an excavator.
Payment :
TT or L/C at sightProduct Origin :
ChinaColor :
Yellow+Dark GreyShipping Port :
Shanghai PortWeight :
5400kgsModel :
BGFS1548Brand :
BorgersTransport Dimensions :
5335*2040*1498mmFeatures
Ø The screen box with 4.8m x 1.5m top deck and 4.8m x 1.5m bottom deck screen.
Ø Screen box angle can be adjusted(Hydraulic version can be adjusted between 13º-19º).
Ø Use heavy -duty screen box, high strength, high vibration intensity and high screening efficiency.
Ø Adopt a variety of screen surface combinations to meet the requirements of various complex working conditions.
Ø The angle,stroke, and vibration intensity of the screen box can be adjusted to meet the needs of different working conditions.
Ø The top screen adopts lateral tension, and the bottom screen adopts tail tension.
Ø Two drive systems are available, Electric motor and Hydraulic motor.
Specification
|
Model |
Max. Feed Size |
Max. Capacity |
Screen Size |
Motor Power |
Working Speed |
Weight |
Transport Dimension LWH |
|
BGFS1548 |
500mm |
500tph |
1520*4860mm |
Hydraulic 15kw |
1000rpm |
5400kgs |
5335*2040*1498mm |
|

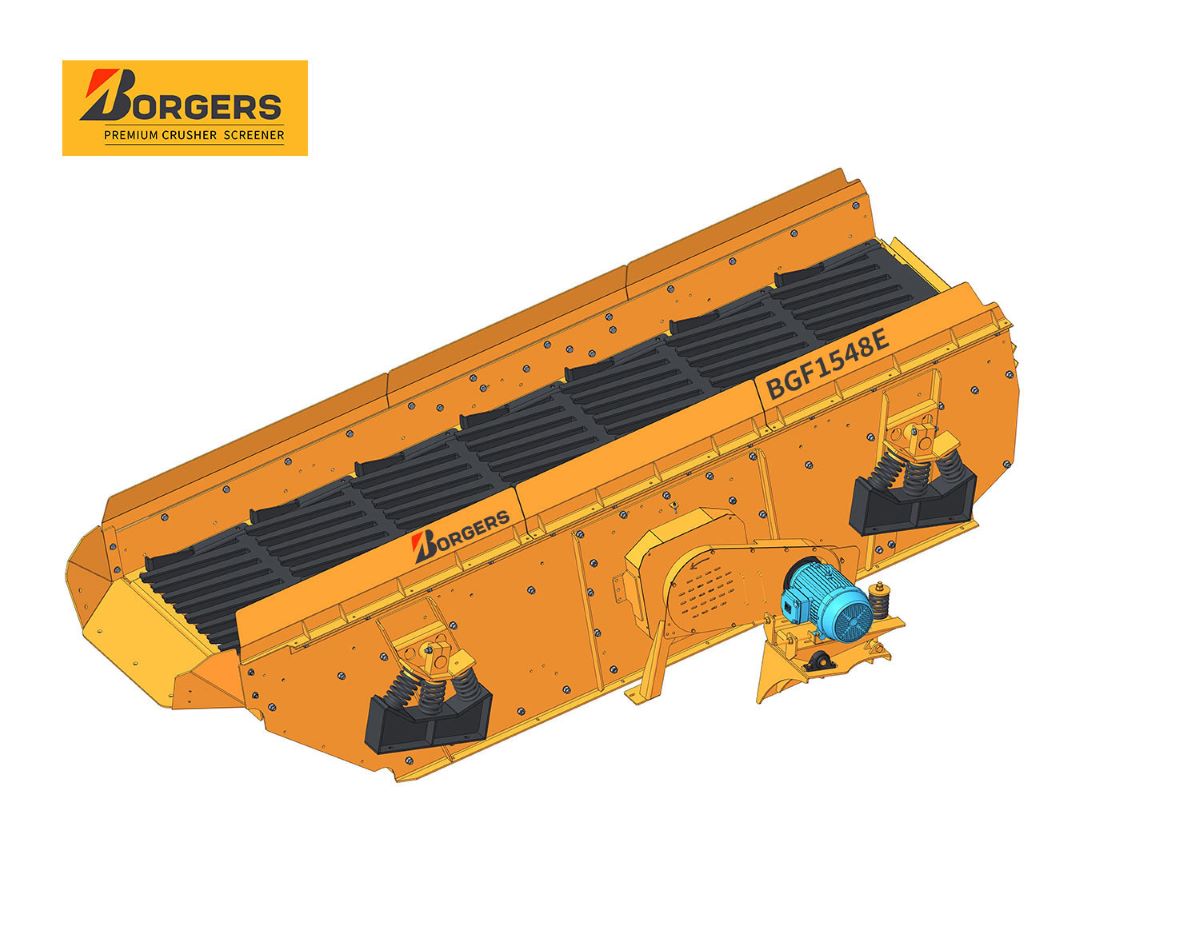

BGFS1548E |
500mm |
500tph |
1520*4860mm |
Electric 15kw |
1000rpm |
5400kgs |
5335*2040*1498mm |
Details Photos
Innovation
Keeping things simple to operate and maintain by using high technology at the lowest possible costs.
Nothing stays the same, everything changes and so do our products. We simplify, perfect
and optimize over and over again by using high quality components and designs.
Your choice of Drive
As fuel and energy costs are playing more and more important effect on operational costs, Borgers offers electric motor and hydraulic motor for your choice.
which ensures a minimum impact on the environment and maintenance and operating costs are considerable lower.
After Service
Servicing your equipment is important, Borgers’s after-service team and its dealers will response within 12 hours
