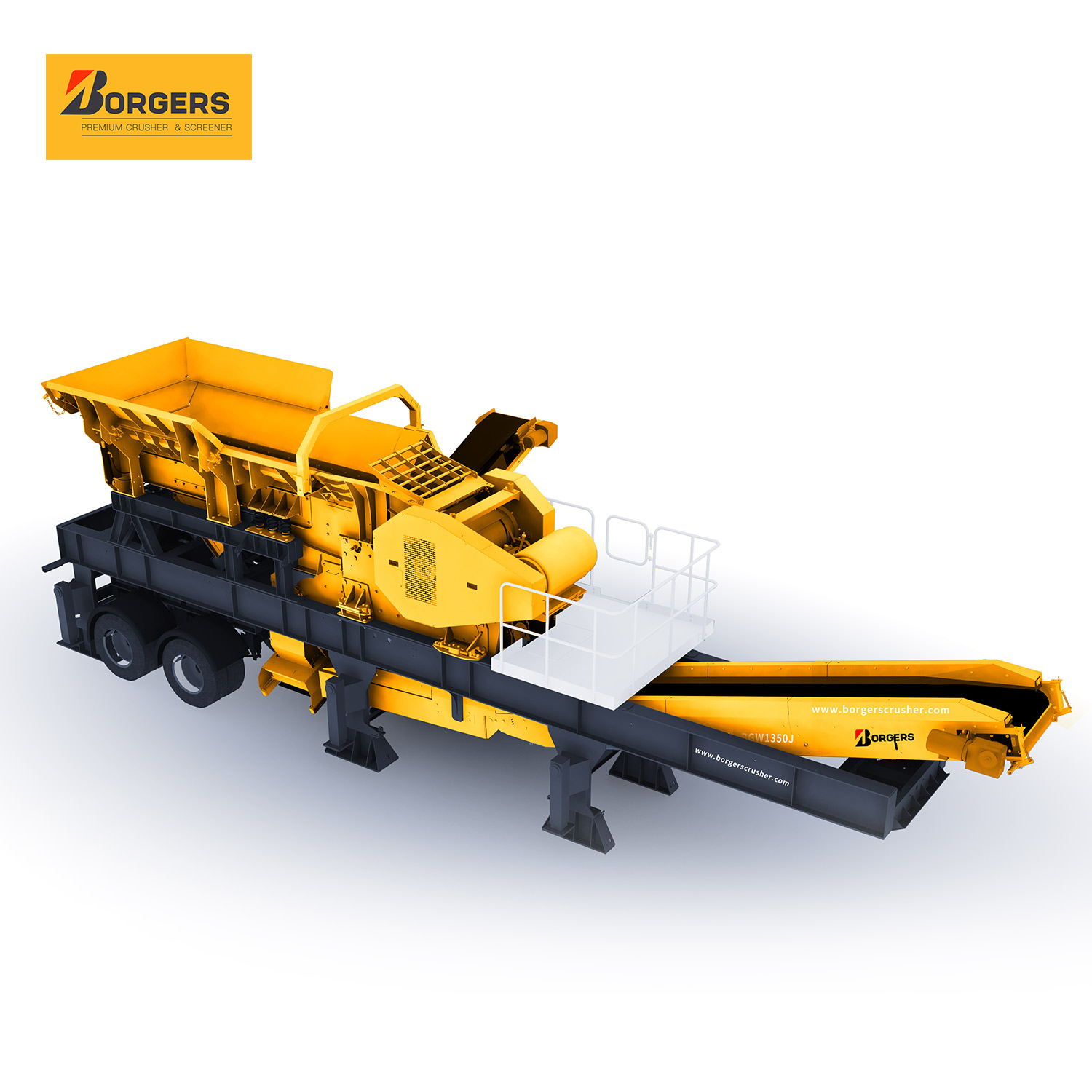

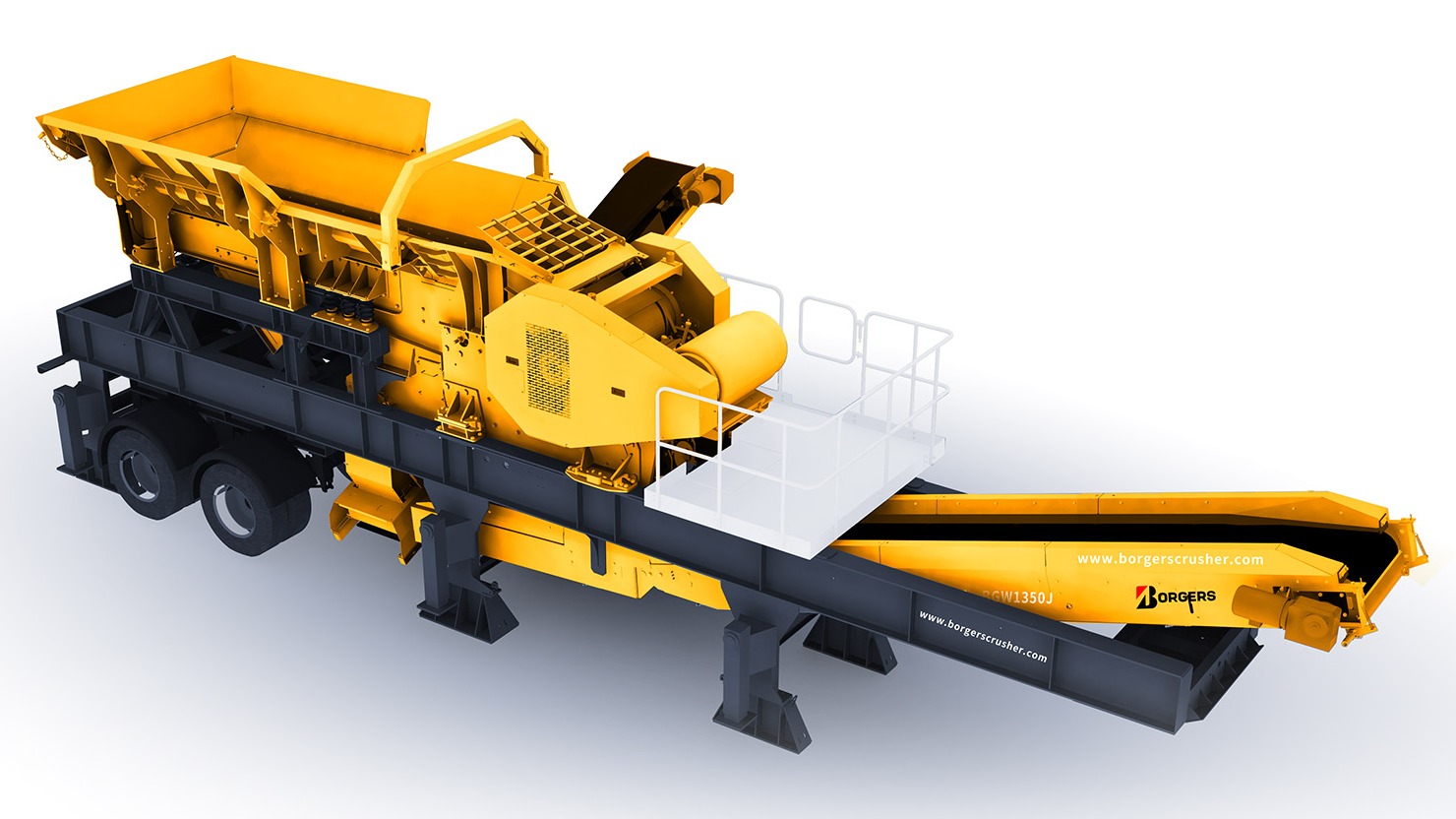

The Borgers BGW1350J wheeled jaw plant has combined the rugged reliability of jaw crusher with the high stroke vibrating grizzly feeder for a high production portable primary crushing machine. BGW1350J wheeled jaw plant can handle almost any materials, whether operating in hard rock, sand and gravel, iron ore or recycle concrete. It is designed to help you be more profitable.
Payment :
TT or L/C at sightProduct Origin :
ChinaColor :
Yellow+Dark GreyShipping Port :
Shanghai PortWeight :
29000kgModel :
BGW1350JBrand :
BorgersTransport Dimensions :
13300x2600x3700mmFeatures
Ø Quarry duty, stress relieved 1000 x 600mm jaw crusher with 90kW drive.
Ø Feeder module constructed of high strength steel hopper side walls with grizzly bypass chute to under crusher conveyor.
Ø Hydraulic closed side setting (CSS) adjustment to change jaw setting quickly
Ø Electric motors with variable frequency feeder drive to control surge loading.
Ø Optional by-pass conveyor to assist with fines removal with 3m stockpiling capabilities
Ø Excellent service and maintenance access via the onboard Catwalk and chassis design
Specification
|
Model |
Inlet Opening |
Max. Feed Size |
Max. Capacity |
CSS RANGE |
Drive |
Electric motor for crushing |
Weight |
Transport Dimension LWH |
|
BGW1350J |
660mm*1000mm |
550mm |
350tph |
40-140mm |
Electric,Plug-in |
90kW |
29000kg |
13300x2600x3700mm |
|
BGW2260C |
1000mm |
160mm |
260tph |
16-38mm |
Electric,plug-in |
160kW |
35500kg |
14000x3200x4800mm |
Photos
