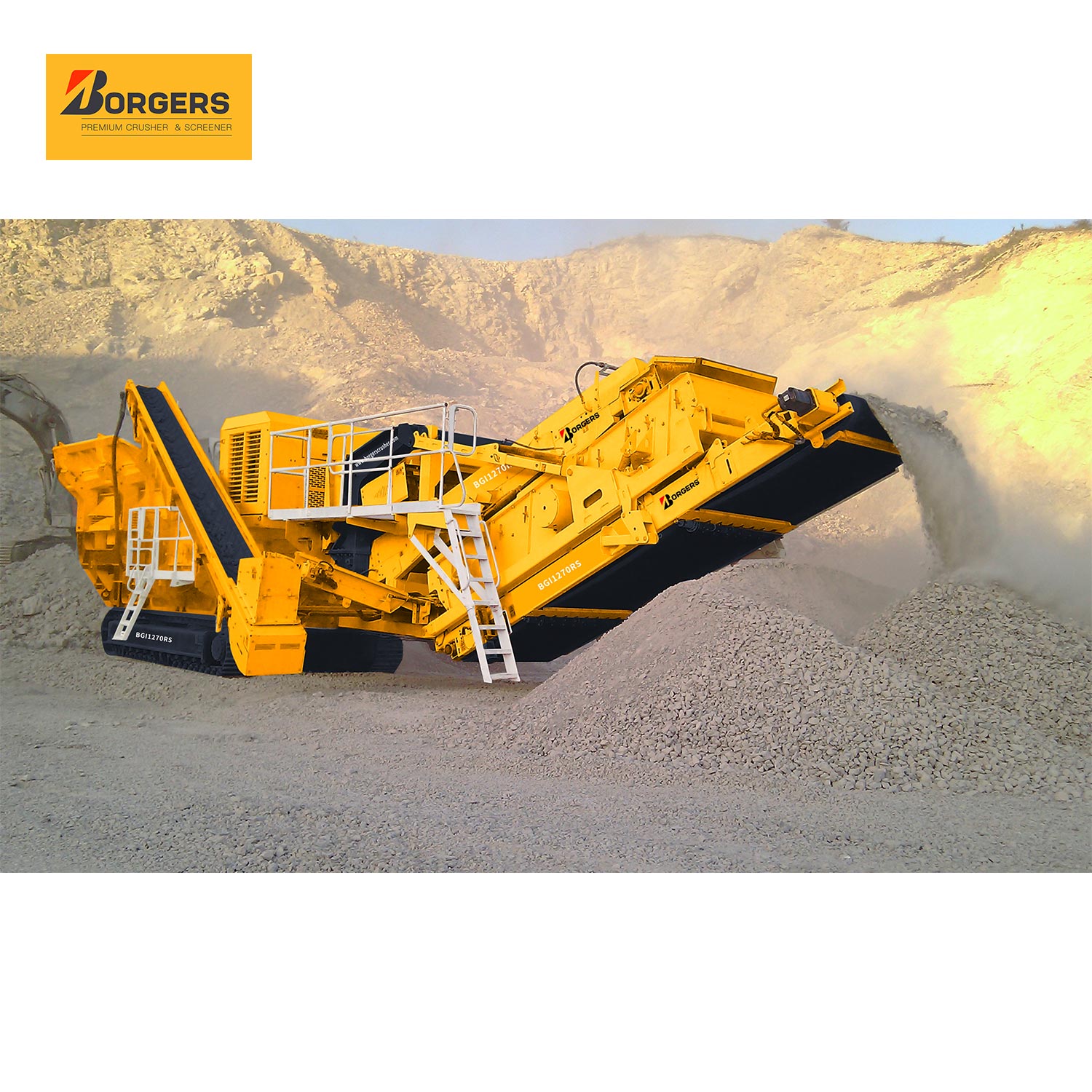

The Borgers BGI1270RS tracked impact crushers provides the versatility of a crushing and screening plant on one machine. Based on the Borgers BGI1270 the machine features an innovative quick detach 4270mm x 1520mm (14’ x 5’) single deck screen for sizing and recirculating oversize material back to the crushing chamber. The sizing screen can be quickly removed for applications that do not require resizing or recirculation of materials for further processing.
Payment :
TT or L/C at sightProduct Origin :
ChinaColor :
Yellow+Dark GreyShipping Port :
Shanghai PortWeight :
BGI1270RSModel :
BGI1270RSBrand :
BorgersTransport Dimensions :
17300*3200*3800mmFeatures:
Ø Detachable 4270mm x 1520mm (14’ x 5’) single deck screen passes oversize material back to the crusher via the on-board recirculating system.
Ø Quick and easy detachable screen and fi nes conveyor for open circuit crushing.
Ø The onboard fines conveyor has a high discharge height of 3m for stockpiling or further processing by a secondary screener
Specification
Model |
Max. Feed Size |
Max. Capacity |
Rotor Size |
Drive |
Engine Power |
Weight |
Transport Dimension LWH |
BGI1040 |
450mm |
230TPH |
Ø1040x1100 |
Directly driven by clutch |
Cat C9/242 |
32000kg |
14500*2600*3500mm |
BGI1040RS |
450mm |
230TPH |
Ø1040x1100 |
Directly driven by clutch |
Cat C9/242 |
41390kg |
16300*3100*3500mm |
BGI1270 |
560mm |
300TPH |
Ø1270x1220 |
Directly driven by fluid coupler |
Cat C13/328 |
49000kg |
14700*3000*3800mm |
BGI1270RS |
560mm |
300TPH |
Ø1270x1220 |
Directly driven by fluid couple |
Cat C13/328 |
63000kg |
17300*3200*3800 |

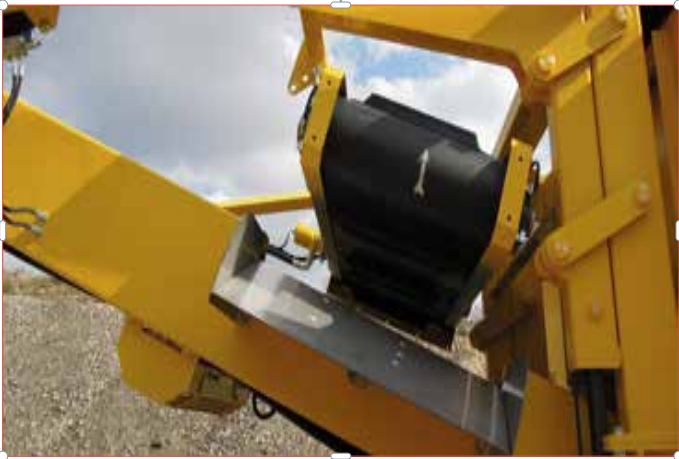

Details Photos

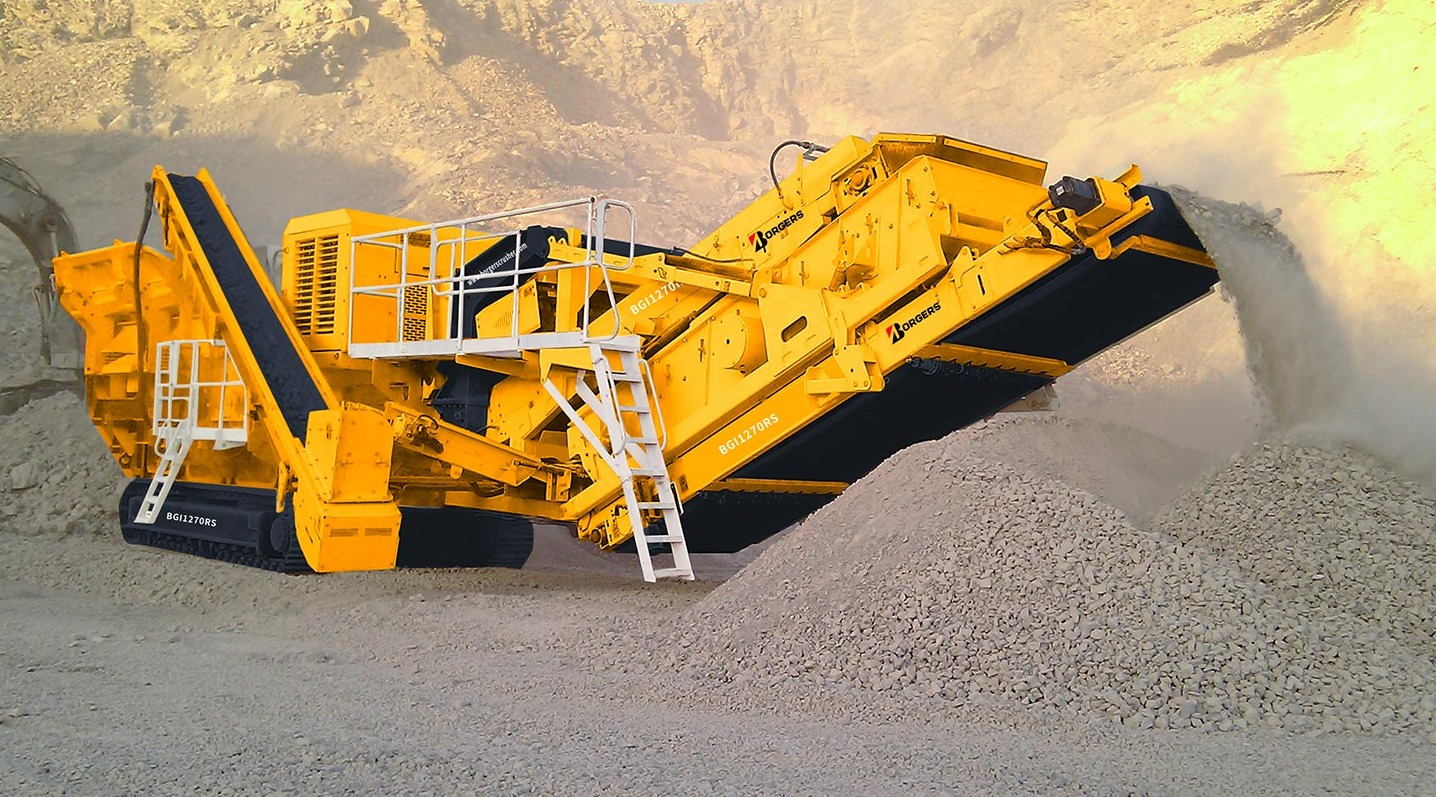

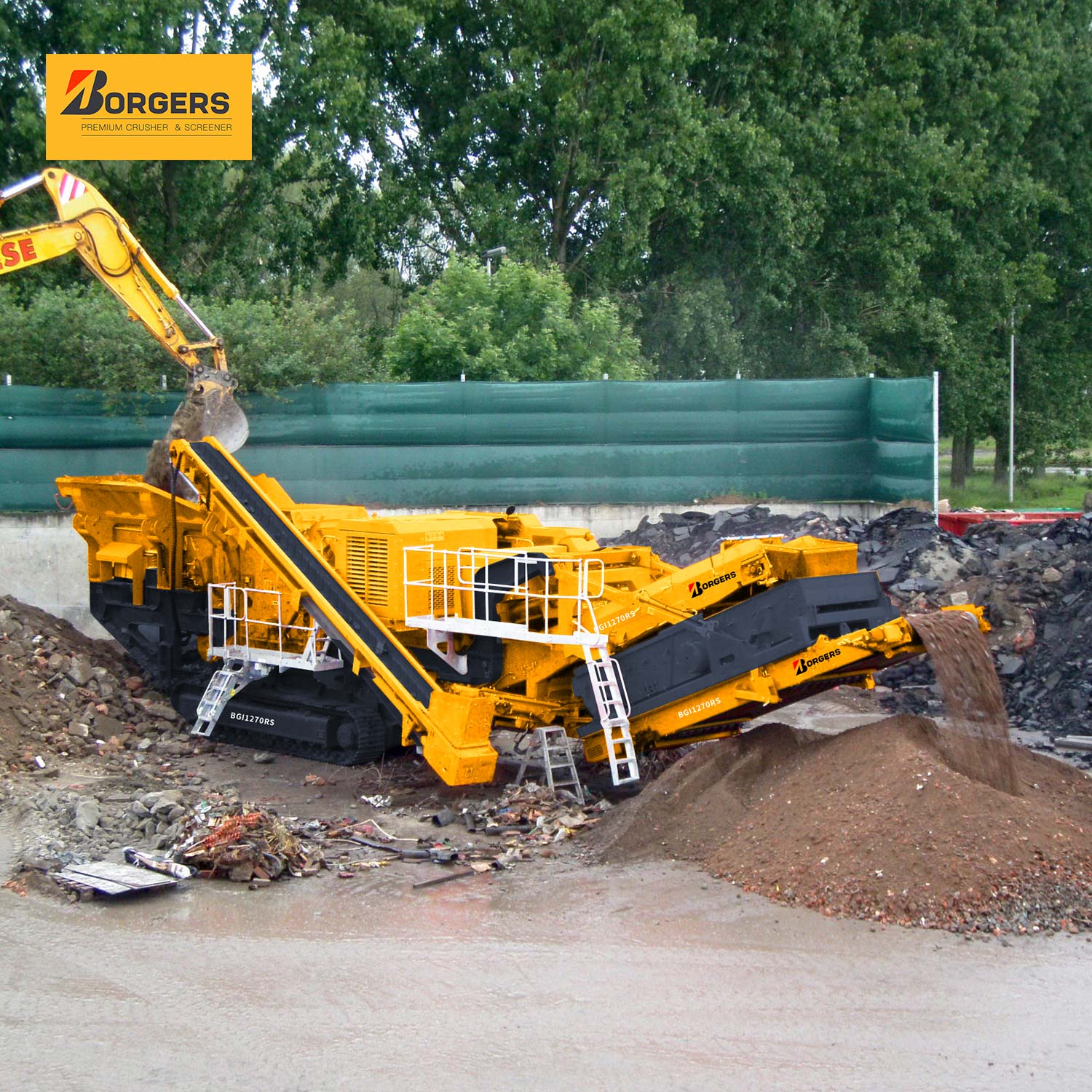

Photos at job site
Innovation
Keeping things simple to operate and maintain by using high technology at the lowest possible costs.
Nothing stays the same, everything changes and so do our products. We simplify, perfect
and optimize over and over again by using high quality components and designs.
Process knowledge
Your choice of Drive
As fuel and energy costs are playing more and more important effect on operational costs, Borgers offers two drive system for your choice.
One is Diesel hydraulic version, which will be more easy for continuous movement. In order to save fuel and energy costs, we designed Fuel Saving Load sensing technology, which is an advanced Diesel engine with low emission norms
Combined with a load sensing hydraulic system which ensures a minimum impact on the environment. Normally, Using load sensing hydraulic systems reduces the fuel usage with 25%.
Another is Electric, hybrid & plug-in version, which could be connected to electrical grids.Maintenance and operating costs are considerable lower.
After Service
Servicing your equipment is important, Borgers’s after-service team and its dealers will response within 12 hours
