Our Single Toggle Jaw Crushers are equipped with robust features to ensure trouble-free operation in heavy and continuous applications. They are specifically designed to be adaptable to Track, Mobile, or Static plant installations. These durable machines are constructed with heavy-duty components to maximize performance and life. The versatile nature of our single-toggle jaw crushers makes them ideal for various applications, including mining, quarrying, and recycling. They can handle well a wide range of materials such as ores, rock, gravel, and recycled concrete.
Payment :
TT or L/C at sightProduct Origin :
ChinaColor :
YellowShipping Port :
Shanghai PortWeight :
Depends on selected configurationBrand :
BorgersTransport Dimensions :
Depends on selected configurationFeatures
Ø Long life, low maintenance and reduced operating cost.
Ø Simple installation for static or mobile situation.
Ø Easy adjustment by pushing hydraulic closed side setting button.
Ø Simple Maintenance.
Ø Bearings kept free from dust and water.
Ø Reliable operation with minimal downtime.
Ø Smooth running operation.
Jaw constructions
Ø Closed side setting adjustment
The crusher closed side setting is infinitely adjustable within setting limits through the actuation of hydraulically controlled wedges and tension rod spring. The wedge assembly is fully contained within the crusher frame.
Ø Main shaft
The main shaft is of large diameter and is forged from hardened and tempered alloy steel to suit heavy-duty applications. The shaft has high fatigue resistance because of its quality surface finish and the absence of screw threads and sharp radii that can cause stress concentrations.
Ø Bearings
Heavy-duty self-aligning double row roller bearings are used for both the jaw-holder and main frame.
Ø Dust seals
Grease purged labyrinth dust seals.
Specification
| Item No. | BG40 | BG42 | BG55 |
| Feed Opening(mm) | 1000x625 | 1070X760 | 1400x760 |
| Max Power(kw) | 90 | 110 | 150 |
| PCD of Pulley(mm) | 1190 8SPC | 1390 10SPC | 1645 10SPC |
| Heaviest Lift(kg) | 5525 | 8020 | 9700 |
| Total Weight(kg) | 11820 | 17300 | 23000 |
| Max RPM | 280 | 250 | 250 |

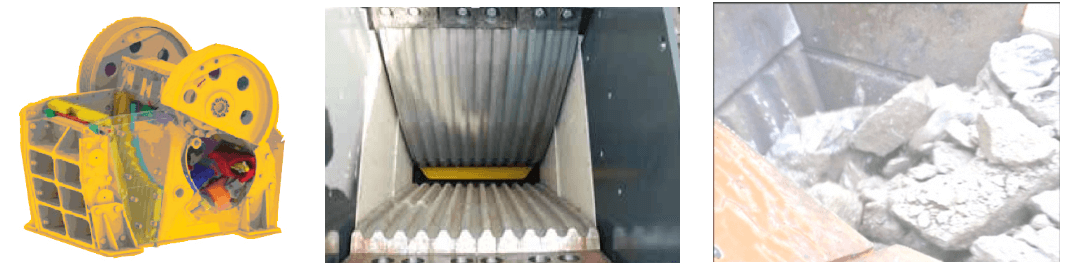

Details Photos
Innovation
Keeping things simple to operate and maintain by using high technology at the lowest possible costs.
Nothing stays the same, everything changes and so do our products. We simplify, perfect and optimize over and over again by using high quality components and designs.
Your choice of Drive
As fuel and energy costs are playing more and more important effect on operational costs, Borgers offers electric motor for your choice.
which ensures a minimum impact on the environment and maintenance and operating costs are considerable lower.
After Service
Servicing your equipment is important, Borgers’s after-service team and its dealers will response within 12 hours.
