Mobile Tracked Screener

China Supplier Mobile Tracked Screener BGS275

The BorgersBGS275 tracked Screener combines scalping, screening and stockpiling into one self contained unit. Screen to handle materials such as sand and gravel, limestone, crushed stone, coal, topsoil and demolition waste. Remote tipping reject grid, hydraulic screen tensioning of bottom deck mesh and three on-board hydraulic folding conveyors are standard. Washing equipment can be fitted to the screenbox if required.

  • Payment :

    TT or L/C at sight
  • Product Origin :

    China
  • Color :

    Yellow+Dark Grey
  • Shipping Port :

    Shanghai Port
  • Weight :

    25000kg
  • Model :

    BGS275
  • Brand :

    Borgers
  • Transport Dimensions :

    14400*3000*3300mm

Features:

Ø The double deck screen box has all round catwalk access allowing for ease of operational maintenance.

Ø Tracked mobility and hydraulic folding product conveyors allow for ease of movement and rapid set up.

Ø Maximum utilization of the two decks provide ultra-effi cient screening capacities even at small aggregate sizes.

Ø Screen box angle can be hydraulically adjusted to an angle between 18° degree and 39°.



Specification

Model

Max. Feed Size

Max. Capacity

Screen Size

Engine Power

Weight

Transport Dimension

LWH

BGS500

150mm

500tph

1520*6100mm

Cat C4.4/97

32000kg

19300*3000*3500mm

BGS275

500mm

275tph

1530*3600mm

Cat C4.4/83

25000kg

14400*3000*3300mm

BGS500E

150mm

500tph

1520*6100mm

①、Cat C4.4/97

②、Electric,Plug-in -74kW

40000kg

19300x3000x35000mm

BGS9800

250mm

800tph

1930*6100mm

Cat6.6/151

43000kg

18900*3000*3500mm

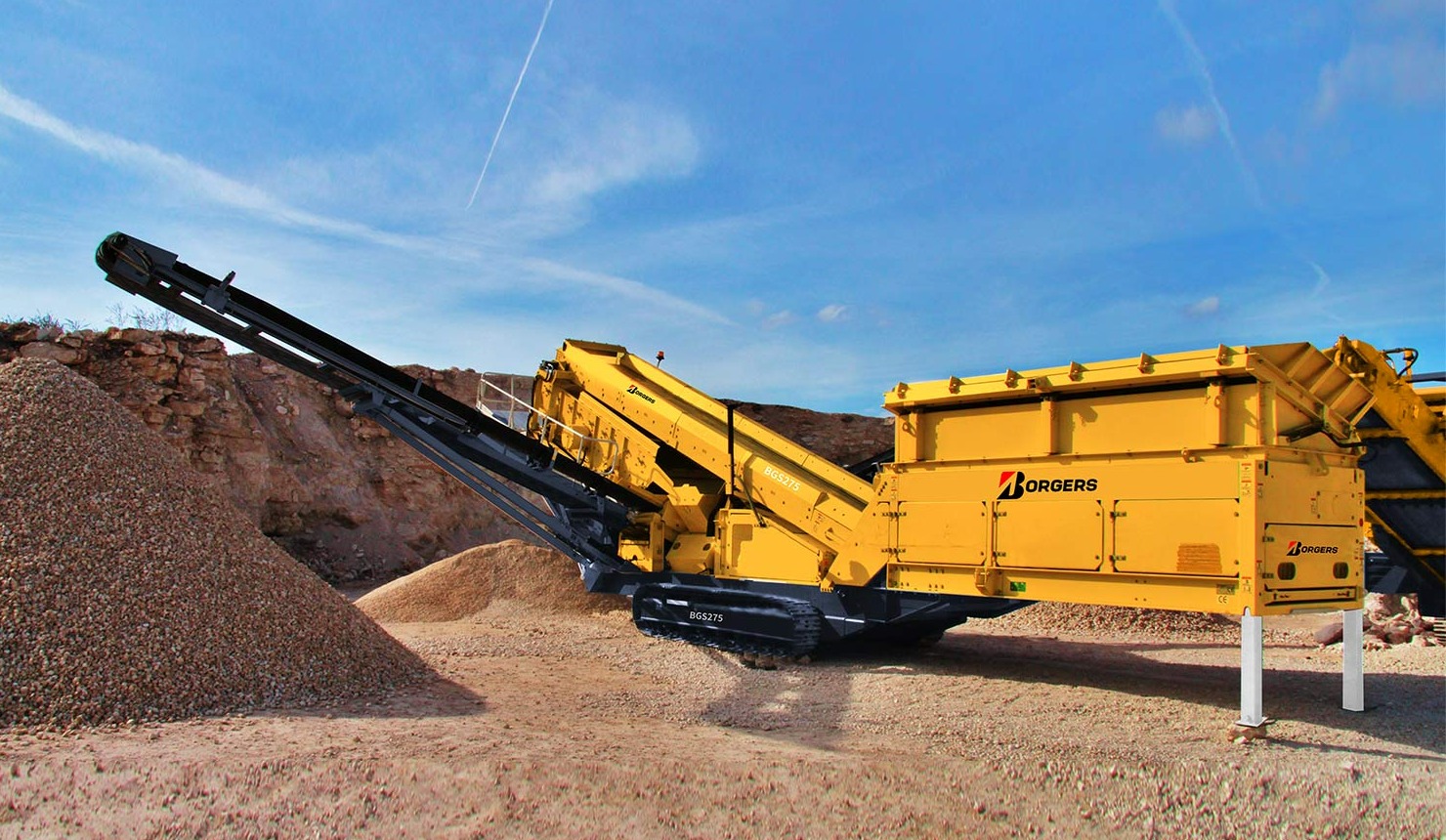

Photos at job site





Innovation

Keeping things simple to operate and maintain by using high technology at the lowest possible costs.

Nothing stays the same, everything changes and so do our products. We simplify, perfect

and optimize over and over again by using high quality components and designs.



Your choice of Drive

As fuel and energy costs are playing more and more important effect on operational costs, Borgers offers two drive system for your choice.



One is Diesel hydraulic version, which will be more easy for continuous movement. In order to save fuel and energy costs, we designed Fuel Saving Load sensing technology, which is an advanced Diesel engine with low emission norms

Combined with a load sensing hydraulic system which ensures a minimum impact on the environment. Normally, Using load sensing hydraulic systems reduces the fuel usage with 25%.



Another is Electric, hybrid & plug-in version, which could be connected to electrical grids.Maintenance and operating costs are considerable lower.



After Service

Servicing your equipment is important, Borgers’s after-service team and its dealers  will response within 12 hours
