Mobile Tracked Screener

High Capacity Mobile Tracked Screener BGS500

The BorgersBGS500 tracked Screener is the industry’s leading tracked mobile inclined screen. A high capacity

belt feed hopper is available with remote tipping grid or double deck vibrating grid. The triple deck screen

configuration provides three full sized 6.1m x 1.52 screens. An innovative hydraulically folded fourth conveyor

allows simple adjustment with variable tilt and slew discharge for recirculation or stockpiling of finished material. Washing equipment can be fitted to the screenbox if required between 18 degree and 30 degree.

  • Payment :

    TT or L/C at sight
  • Product Origin :

    China
  • Color :

    Yellow+Dark Grey
  • Shipping Port :

    Shanghai Port
  • Weight :

    32000kg
  • Model :

    BGS6500
  • Brand :

    Borgers
  • Transport Dimensions :

    19300*3000*3500mm

Features:

Ø The triple deck 6.1m x 1.525 screen box with full catwalk access is the largest and most accessible in it’s class.

Ø A combination of quick wedge tensioning, convenient access holes, and hydraulic tensioning on the bottom deck ensure mesh set up and change out times are kept to an absolute minimum.

Ø Maximum utilisation of three 6.1m x 1.52m decks provide ultra-efficient screening capacities even at small aggregate sizes.

Ø The fourth (oversize plus) conveyor provides hydraulic variable tilt and side slew capability to accurately discharge materials for recirculation to crushers or for stockpiling.

Ø Screen box angle can be hydraulically adjusted to an angle between 18° and 30°



Specification

Model

Max. Feed Size

Max. Capacity

Screen Size

Engine Power

Weight

Transport Dimension

LWH

BGS500

150mm

500tph

1520*6100mm

Cat C4.4/97

32000kg

19300*3000*3500mm

BGS275

500mm

275tph

1530*3600mm

Cat C4.4/83

25000kg

14400*3000*3300mm

BGS500E

150mm

500tph

1520*6100mm

①、Cat C4.4/97

②、Electric,Plug-in -74kW

40000kg

19300x3000x35000mm

BGS9800

250mm

800tph

1930*6100mm

Cat6.6/151

43000kg

18900*3000*3500mm

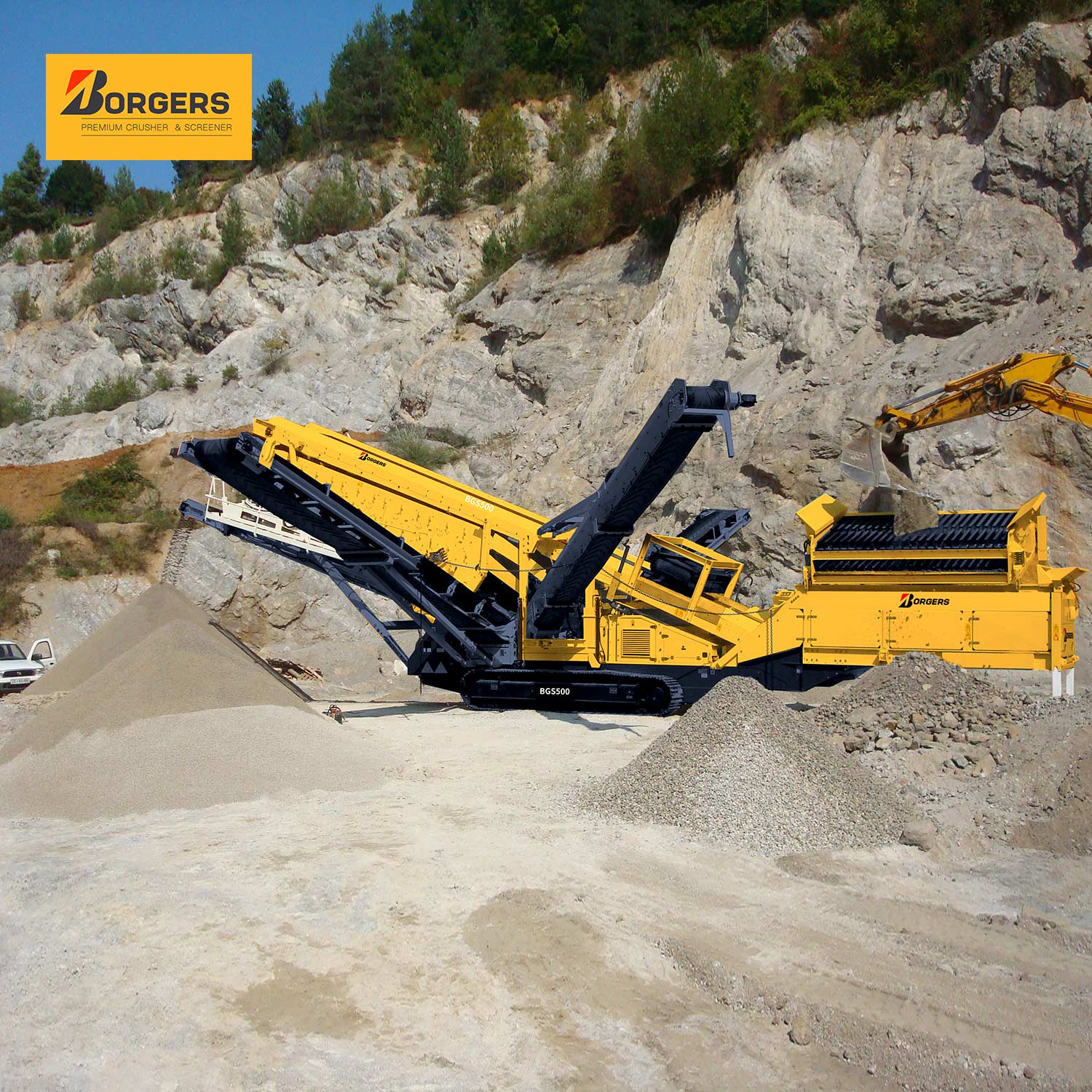

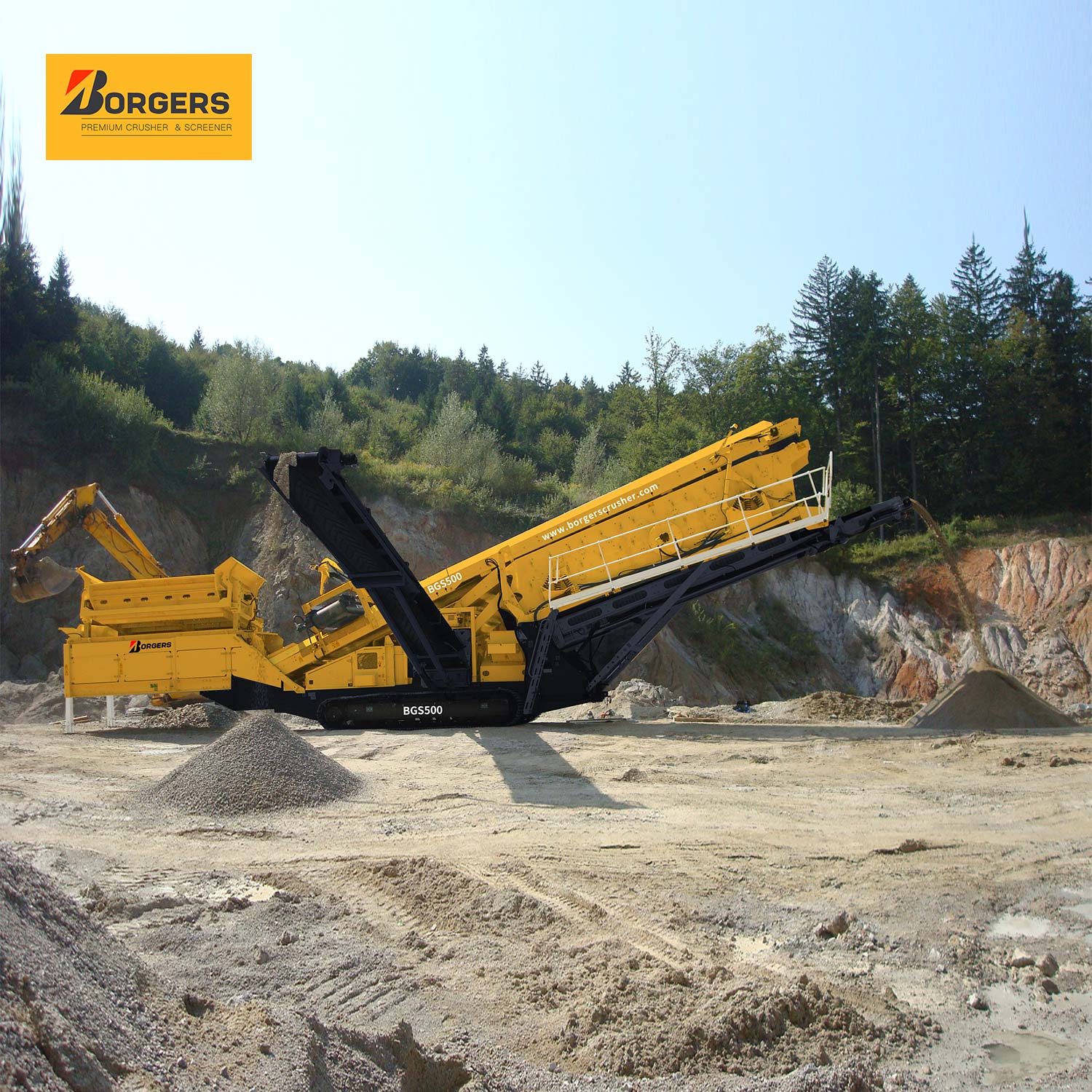

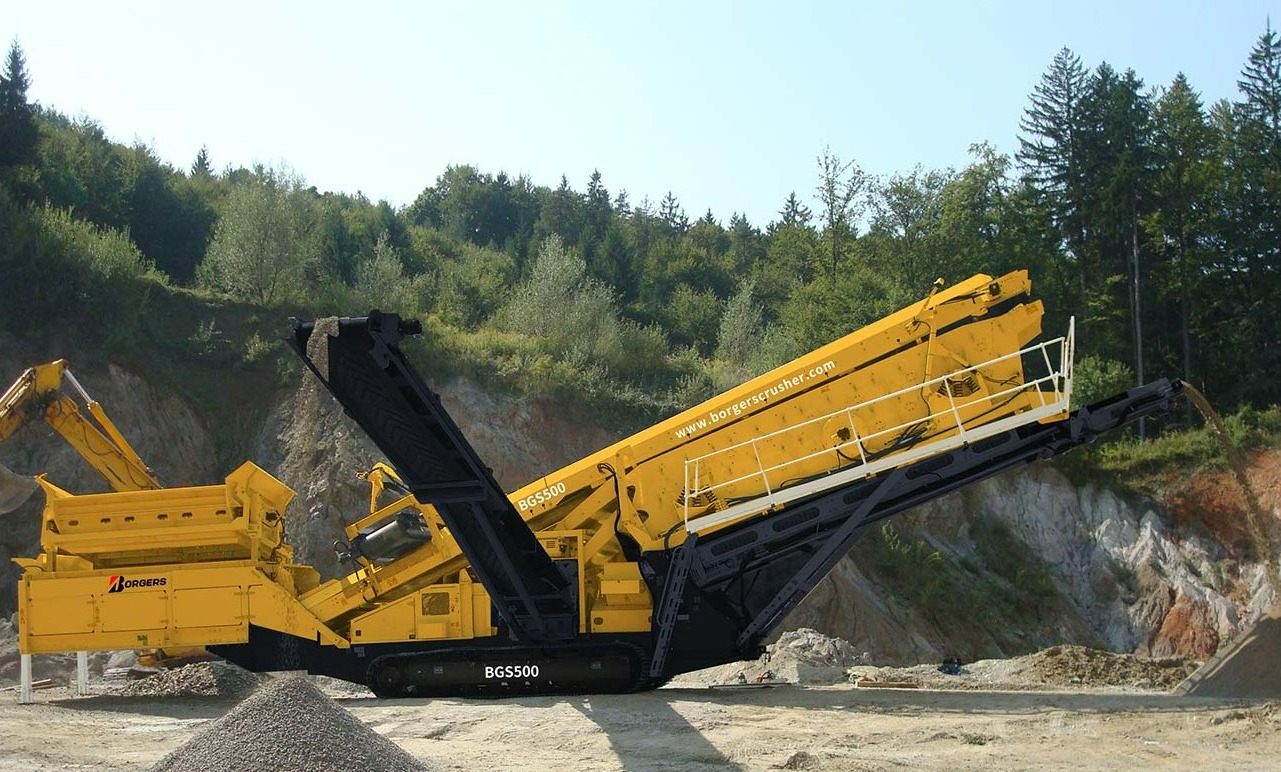

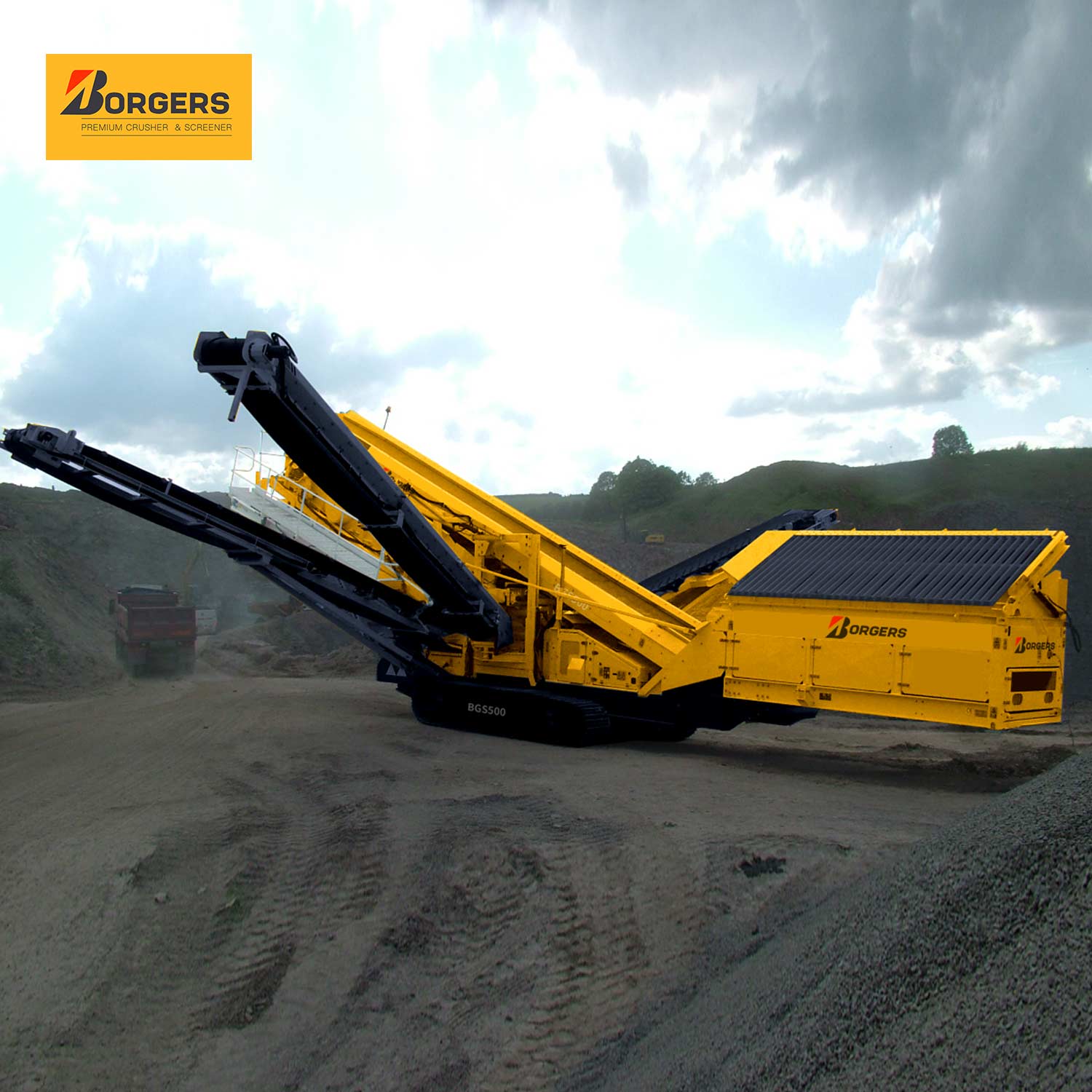

Photos at job site





Innovation

Keeping things simple to operate and maintain by using high technology at the lowest possible costs.

Nothing stays the same, everything changes and so do our products. We simplify, perfect

and optimize over and over again by using high quality components and designs.



Your choice of Drive

As fuel and energy costs are playing more and more important effect on operational costs, Borgers offers two drive system for your choice.



One is Diesel hydraulic version, which will be more easy for continuous movement. In order to save fuel and energy costs, we designed Fuel Saving Load sensing technology, which is an advanced Diesel engine with low emission norms

Combined with a load sensing hydraulic system which ensures a minimum impact on the environment. Normally, Using load sensing hydraulic systems reduces the fuel usage with 25%.



Another is Electric, hybrid & plug-in version, which could be connected to electrical grids.Maintenance and operating costs are considerable lower.



After Service

Servicing your equipment is important, Borgers’s after-service team and its dealers  will response within 12 hours
