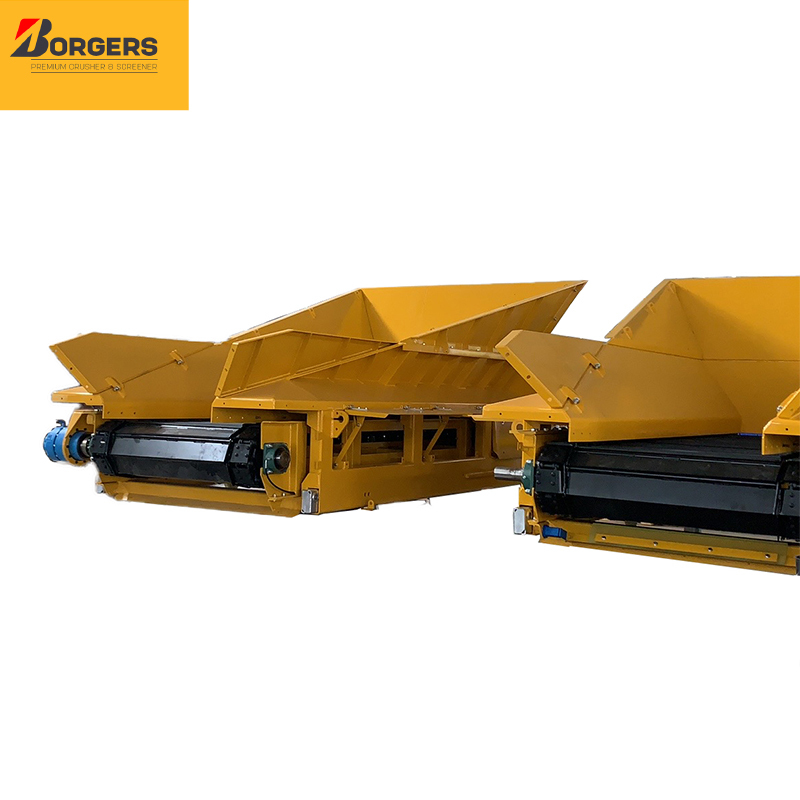

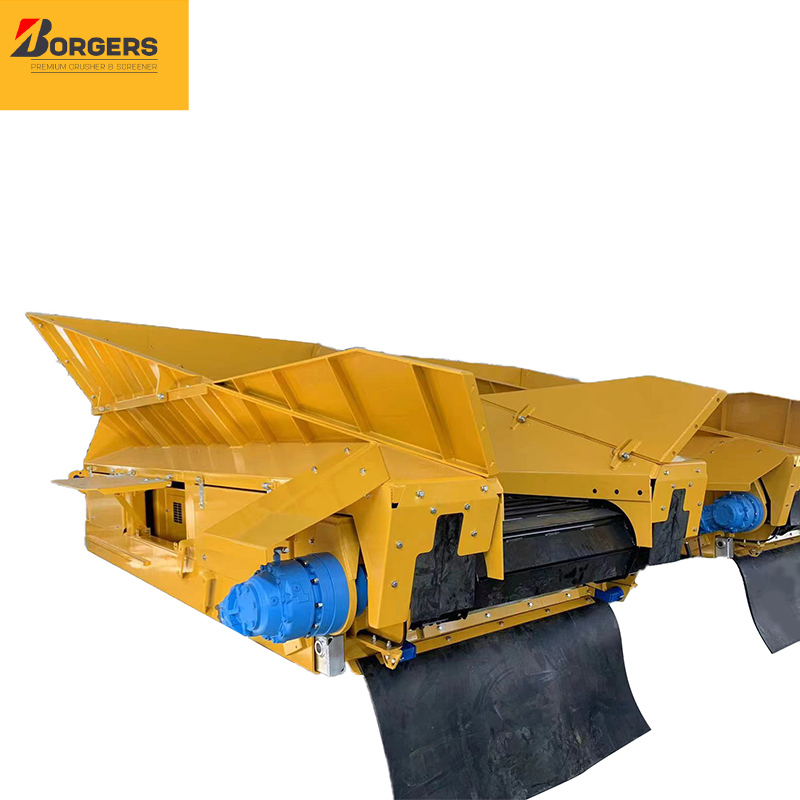

Borgers BGSF Series Apron Feeder are typically used for delivering materials to downstream equipment for further processing. They are ideal for transferring hard,abrasive,tough materials with lumps of larger dimension. It is designed and built to withstand extreme impact loading with its rugged and robust structure. It consists of head shaft

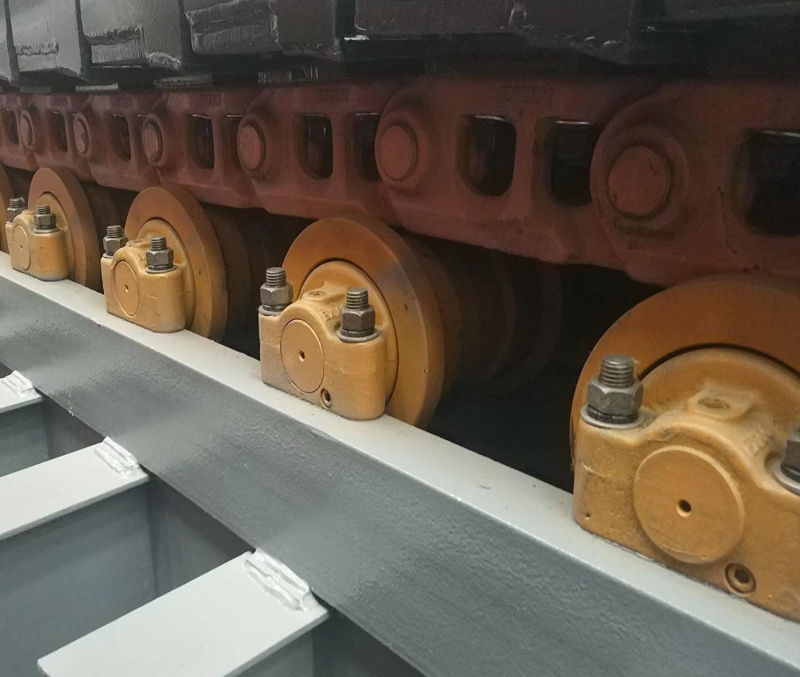

Assembly,tail idler,chain, carry roller, return roller,flights,drive sprockets,impact rail and main frame.
All chain components are sealed and lubricated for life, so there is no need for regular lubrication. Provided long-term reliable and fault free operation guarantee for end users.
Borgers apron feeder is the perfect combination of sturdiness and reliability
The quality, durability, and reliability of the equipment comply with relevant industry standards, and the application of heavy loads can cope with most of working conditions
Payment :
T/TProduct Origin :
ChinaColor :
YellowShipping Port :
SHANGHAI /XIAMENWeight :
2000kgsModel :
BGSF1038Brand :
BorgersTransport Dimensions :
1800*8000mmFeatures:
Ø The Apron Feeder series is used for a variety of application,Aggregate,Mining Ore,Recycle. Extremely operated in
Cement industry,Topsoil, copper mining, Construction waste, iron ore, Bauxite,coal mine,Limestone mine
Ø Can work horizontally or at different angles from 0- 20 °degree , save space and lessen the height of the hopper.;
Ø Provide hopper according to customer’s requirements;

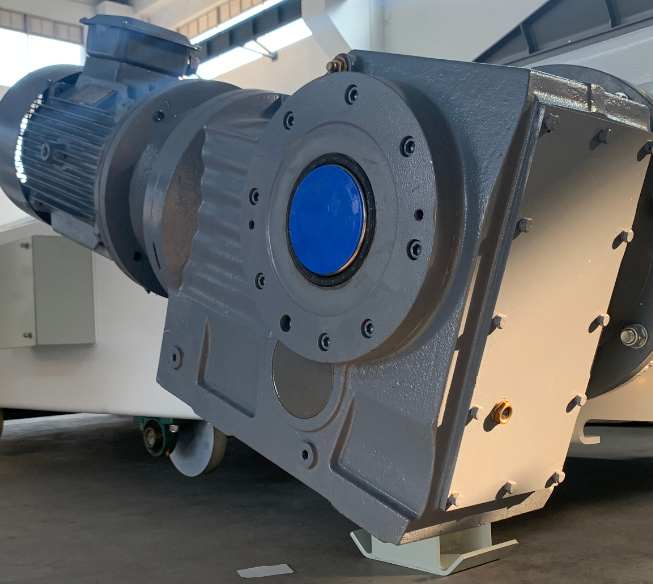

Ø Two Drive version for your choice. Electrical motor or hydraulic power depending on customer’s requirement and site’s demand.
Ø Low energy consumption and low operating costs
Ø large capacity than other feeders.
Ø longest service life, lowest maintenance cost
Standard feeder specification
| Model | Size( WxL) | Power | Max. Feed Size | Max. Capacity | Rate | Angle |
| BGSF1034 | 1000x3400mm | 11Kw | 500mm |
250-400tph | 0~0.3 m/s | 0-20° |
| BGSF1038 | 1000x3800mm | 11 Kw | 500mm | 250-400tph | 0~0.3 m/s | 0-20° |
| BGSF1043 | 1000x4300mm | 15Kw | 500mm | 250-400tph | 0~0.3 m/s | 0~-20° |
| BGSF1052 | 1000x5200mm | 22(2x11)Kw | 500mm |
250-400tph | 0~0.3 m/s | 0~-20° |
| BGSF1234 | 1200x4300mm | 15Kw | 600mm | 250-500tph | 0~0.3 m/s | 0~-20° |
| BGSF1238 | 1200x3800mm | 15Kw |
600mm | 250-500tph | 0~0.3 m/s | 0~-20° |
| BGSF1243 | 1600x4300mm | 22(2x11)Kw | 600mm | 250-500tph | 0~0.3 m/s | 0~-20° |
| BGSF1252 | 1200x5200mm | 30(2x15)Kw | 600mm | 250-500tph | 0~0.3 m/s | 0~-20° |
Note: Power may vary according to customer needs
Heavy Duty specification
| Model | Size( WxL) | Max. Feed Size | Max. Capacity | Rate | Angle |
| BGSF1660 | 1600x6000mm | 800mm | 600-800tph | 0~0.2m/s | 0° |
| BGSF1680 | 1600x8000mm | 800mm | 600-800tph | 0~0.2m/s | 0° |
| BGSF1860 | 1800x6000mm | 900mm | 800-1000tph | 0~0.2m/s | 0° |
| BGSF1880 | 1800x8000mm | 900mm | 800-1000tph | 0~0.2m/s | 0° |
Advantages:
Extreme impact loading conditions, robust design.
Large capacity
Long service life
Product details
